100kva China grupo electrógeno diesel, potentes generadores industriales
* generador china with low fuel consumption
* Yuchai Generador diesel tank: 8 hours or 12 hour or optional
* Low maintenance and durable quality China generators
* Reliable chinese Genset Standard chargers: Float battery charger and battery charger
* Low price China generating with good quality for you better choice
* Electricity Yuchai machinery for rental genset, emergency power supply
Optional Supply
* Weatherproof/Soundproof enclosure
* Mobile trailer
* Remote radiator cooling
* Engine/alternator heaters
* Auto start/Auto mains failure(AMF) / ATS control panel, circuit breaker
* Auto load sharing & synchronizing panel
Generator set information
|
Generator model |
YCW-100T5 |
|
Prime power @ 50Hz |
100KVA/80KW |
|
Standby power @ 50Hz |
110KVA/88KW |
Engine Data
|
Engine brand |
|
Yuchai |
|
Model |
|
YC6B135Z-D20 |
|
Number of Cylinders |
|
6 |
|
Bore x stroke |
mm |
108x125 |
|
Rated RPM |
|
1500 |
|
Max. output power |
kw |
101 |
|
Displacement |
L |
9.839 |
|
Compression ratio |
|
17.5:1 |
|
Air intake way |
|
Turbo-charged & intercooled |
Low fuel consumption generator(L/h)
Prime power 100%: 12.7
Prime power 75%: 9.5
Prime power 50%: 6.4
Alternator Data
* Brand: Stamford, Leroy Somer, Marathon or MeccAlte
* 4-pole, brushless, self exciting, self regulating
* Drip proof, IP21 protection, class H insulation
* Industrial standard, single bearing type
* Self ventilated, screen protected
* oltage regulation ±1% at any fixed load
Genset dimension
Open generator (mm): 1750*700*1200
Weight (kg): 1500
Silent generator (mm): 3000*1240*1750
Weight (kg): 2400
|
|

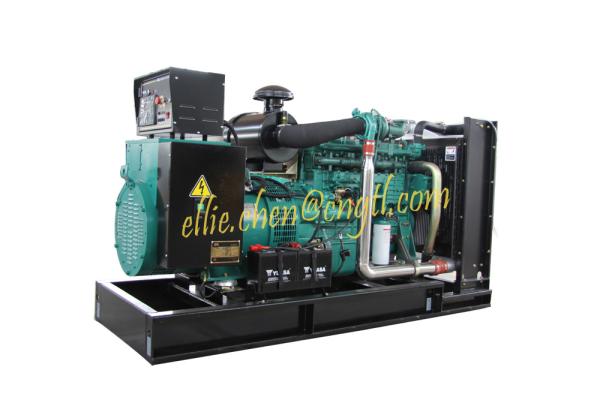

100kva China grupo electrógeno diesel, potentes generadores industriales Images
|
